Smart Card Reader USB-A OMNIKEY 3121

zł72.00

58.54 tax excl.

R31210320-01

<p>The OMNIKEY® 3121 is a high-performance contact smart card reader from HID Global, designed for USB-connected desktop use. Its robust housing and multiple standing options for vertical or horizontal placement make it ideal for online banking, digital signature applications and single sign-on. Easy to install, with no extra drivers required.</p>

Last items in stock

  Payments by bank transfer, Blik or by Card:

Visa, Visa Electron, Mastercard, MasterCard Electronic, Maestro

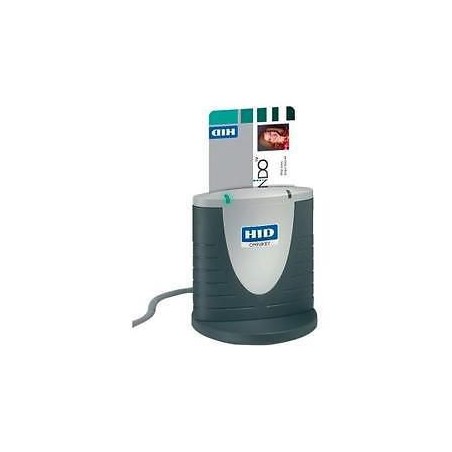

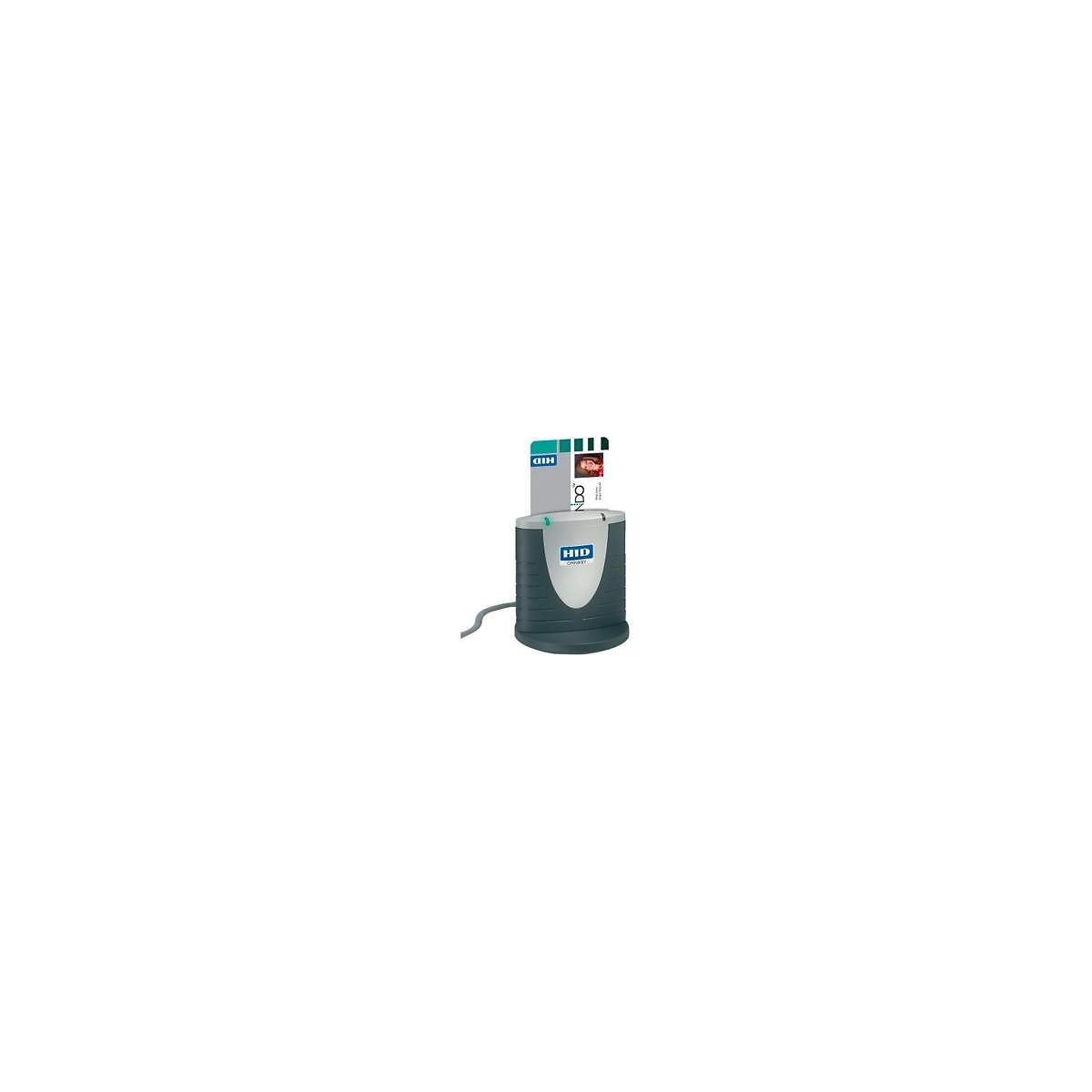

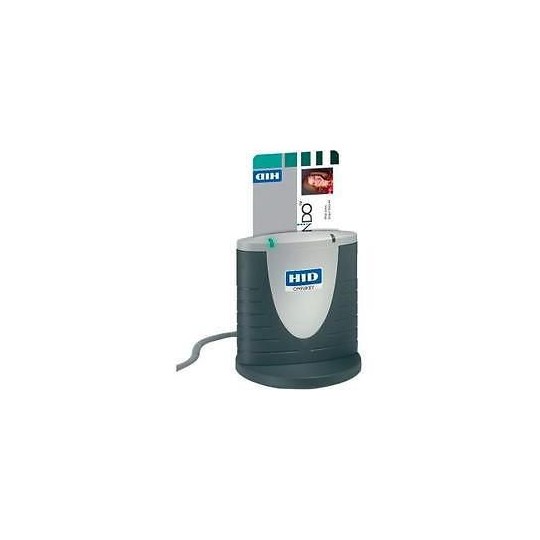

OMNIKEY® 3121 – USB Smart Card Reader

HID Global, with its product brand OMNIKEY, is one of the world's leading manufacturers of innovative smart card readers. With the OMNIKEY® 3121, it offers a high-performance smart card reader, USB connected, for desktop use with multiple standing options in a robust housing.

The OMNIKEY® 3121 is an easy-to-install USB card reader, suited for all contact smart card operations such as online banking, digital signature applications and single sign-on. It uses natively supported CCID drivers within the operating system, eliminating the need for additional driver installation.

Key Features

  • Different standing base options available for convenient vertical and horizontal use
  • Shipped with support for adhesion (e.g. to PC monitor)
  • Robust housing and long USB cable
  • High speed data transmission
  • All major operating systems supported
  • Plug & play installation via native CCID drivers
  • Compliant with major industry standards (ISO 7816, USB CCID, PC/SC)

Typical Applications

  • Online banking and electronic payments
  • Digital / qualified electronic signature
  • Single sign-on (SSO)
  • Access control and electronic identification (e-ID)

Technical Specifications

General Information
Manufacturer HID Global (OMNIKEY brand)
Model OMNIKEY® 3121
Device type USB desktop contact smart card reader
Colour Two-tone grey/black
Dimensions (L × W × H) approx. 80 × 67 × 28 mm
Smart Card Interface
Card size ID-1 (full size)
Standard ISO/IEC 7816
Supported card classes Class A: 5V/60 mA; Class B: 3V/60 mA; Class C: 1.8V/35 mA
ATR response time up to 1.6 s
Protocols Asynchronous: T=0, T=1; Synchronous: S=8 (I²C), S=9 (3-wire), S=10 (2-wire)
Interface speed up to 420 kbps
Card clock frequency up to 12 MHz
Pin handling C4 / C8 supported
Durability (insertion cycles) 100,000
Card detection Automatic, with auto power-off, short circuit and thermal protection
Host Interface (PC)
Connector USB Type A
USB standard USB 2.0 Full Speed (12 Mbps), extended USB 3.0 operability
Cable length 150 cm (59.1")
Power USB-powered, no external power supply required
Operating Conditions
Operating temperature 0°C to 55°C
Storage temperature -20°C to 80°C
Relative humidity 10% to 90%
Compliance & Certificates
Operating systems Windows 7/8/8.1/10, Windows Vista, Windows Server 2008 R2/2012, Windows CE 5/6/7, macOS, Linux
Standards ISO 7816, USB CCID, PC/SC, HBCI
Certifications CE, FCC, UL, VCCI, KCC, MIC, RCM (C-Tick)
Environmental compliance RoHS
R31210320-01

Specific References

ean13
639399025945
mpn
R31210320-01
