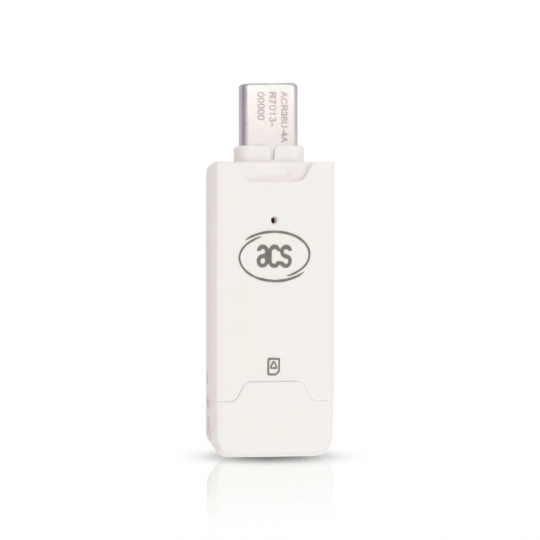

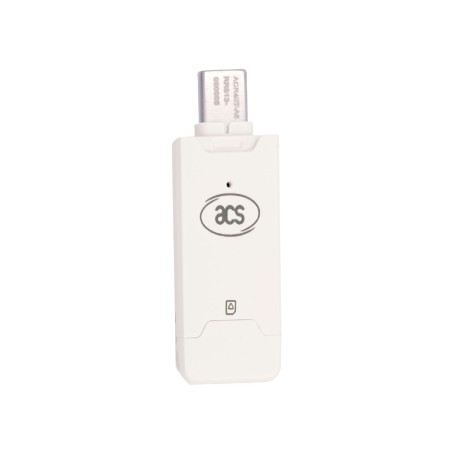

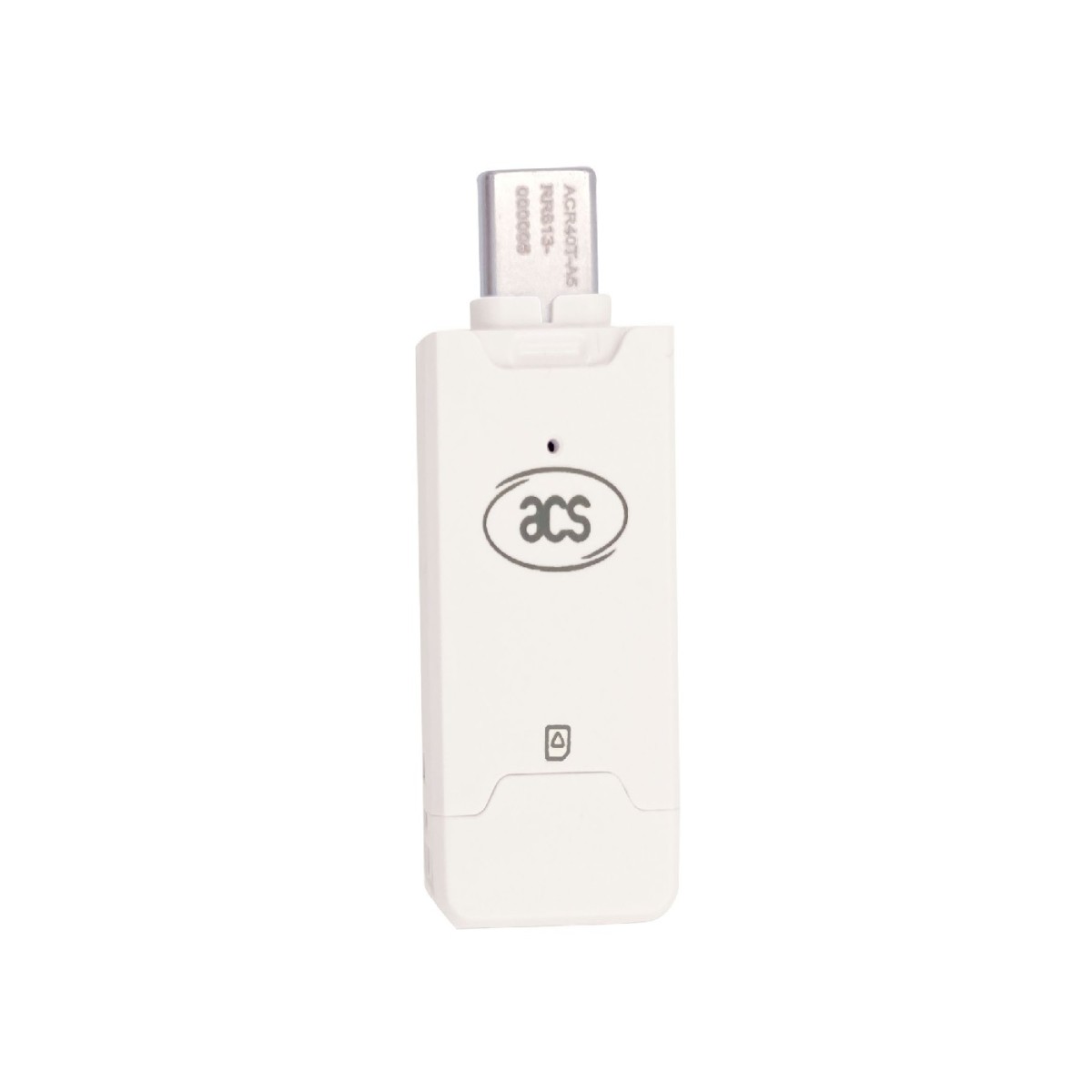

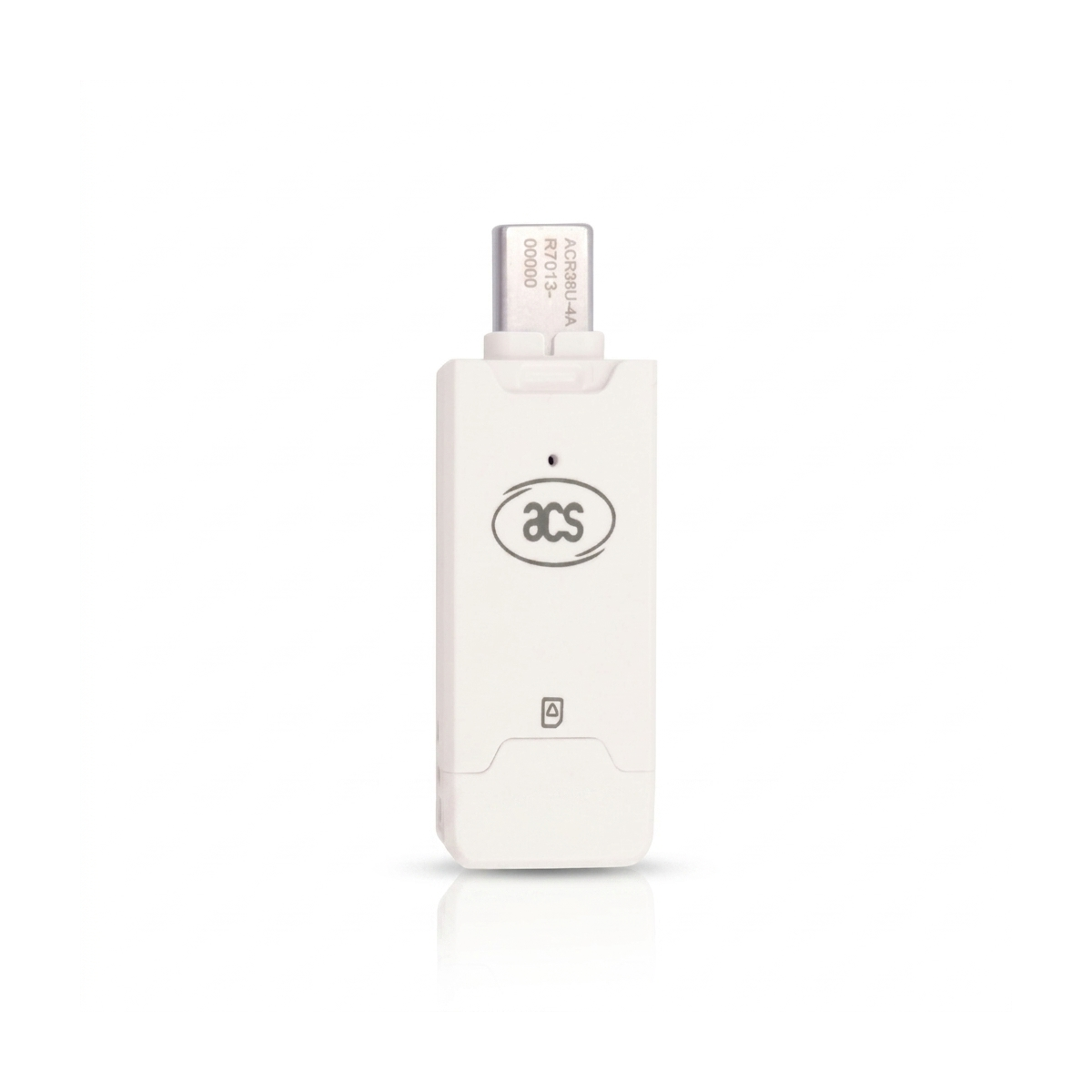

Smart Card Reader USB-C ACS ACR40T-A5

zł60.27

49 tax excl.

ACR40T-A5 - compact, high-speed SIM-sized smart card reader with USB Type-C and sliding card slot. Firmware upgradeable; supports ISO 7816 (A/B/C) and T=0/T=1 protocols.

  Payments by bank transfer, Blik or by Card:

Visa, Visa Electron, Mastercard, MasterCard Electronic, Maestro

ACR40T-A5 - SIM-sized high-speed smart card reader (USB Type-C)

The ACR40T-A5 is ACS’s compact, high-speed SIM-sized contact smart card reader featuring a reversible USB Type-C connector. Its signature design element is a sliding card entry slot that simplifies card handling and protects contacts during transport.

The reader supports ISO 7816 Class A, B and C smart cards (5 V, 3 V, 1.8 V) and microprocessor cards using the T=0 and T=1 protocols. It is firmware-upgradeable, enabling long-term compatibility and security updates without replacing hardware.

Main features:
  • USB Type-C interface (USB 2.0 Full Speed) with reversible plug
  • Sliding card entry slot — protects contacts and eases card insertion
  • Supports ISO 7816 Class A/B/C (5 V, 3 V, 1.8 V)
  • Supports microprocessor cards (T=0, T=1) and memory cards
  • Firmware upgradeable (post-deployment)
  • Compliant with CCID, PC/SC and Microsoft® WHQL
  • Compatible with Windows®, Linux®, macOS® and Android

Selected technical specifications

Interface USB Type-C (USB 2.0 Full Speed), CCID
Supported cards ISO 7816 Class A/B/C; microprocessor cards (T=0, T=1); memory cards
Firmware Upgradeable post-deployment
Dimensions 4.47 × 1.78 × 0.8 cm
Net weight 0.005 kg
Gross weight (package) 0.015 kg
H.S. tariff code 8471607000
UNSPSC 43211728

Use cases: PKI tokens, digital signing, user authentication, mobile SIM-sized integrations.

Data sheet

Card Interface
contact interface
USB Type
USB-C

Specific References

ean13
4897129310457
